The Penguin Ionisation Robot

High tech solutions to protect the health of both your buildings and the people using them.

The Penguin Ionisation Robot

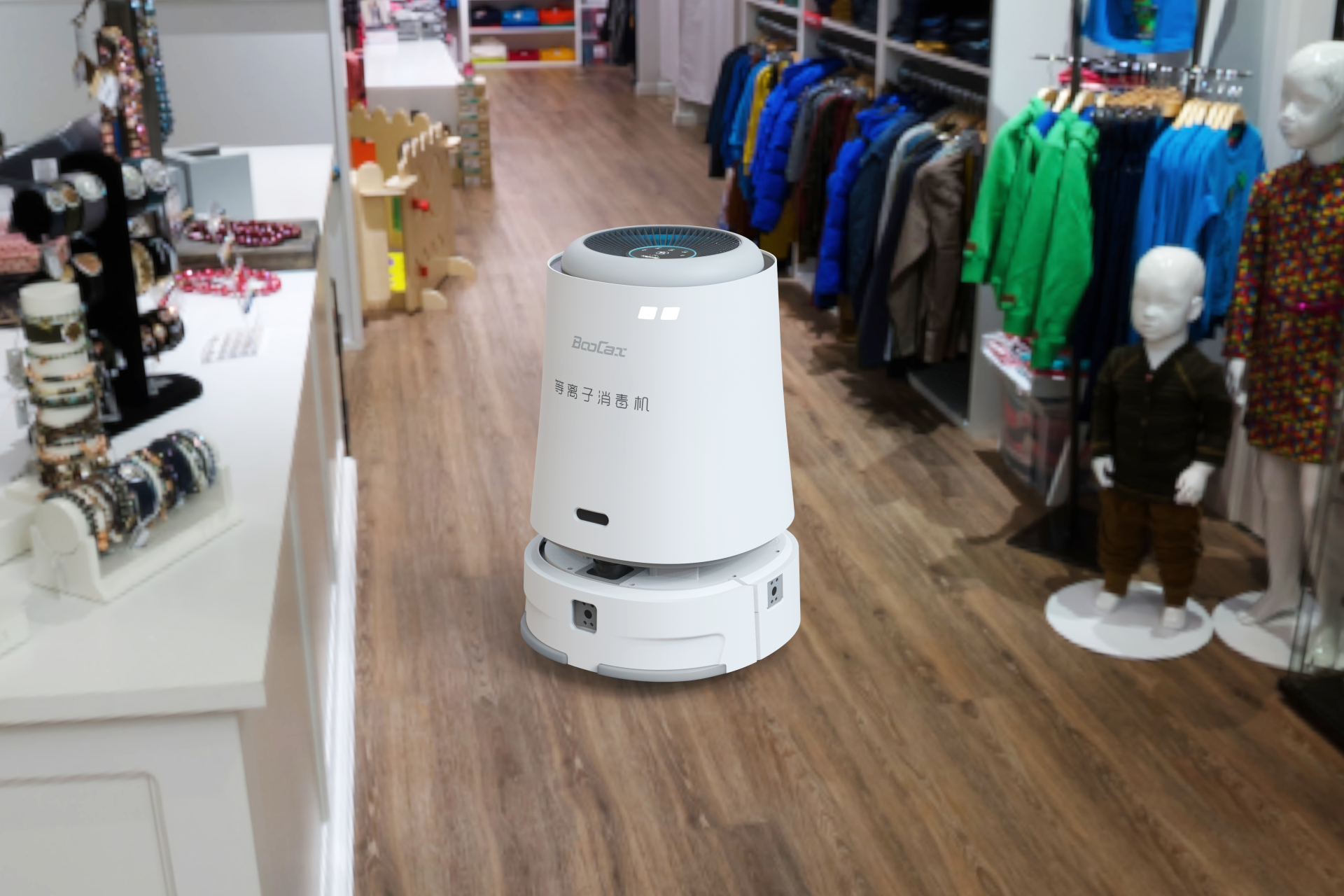

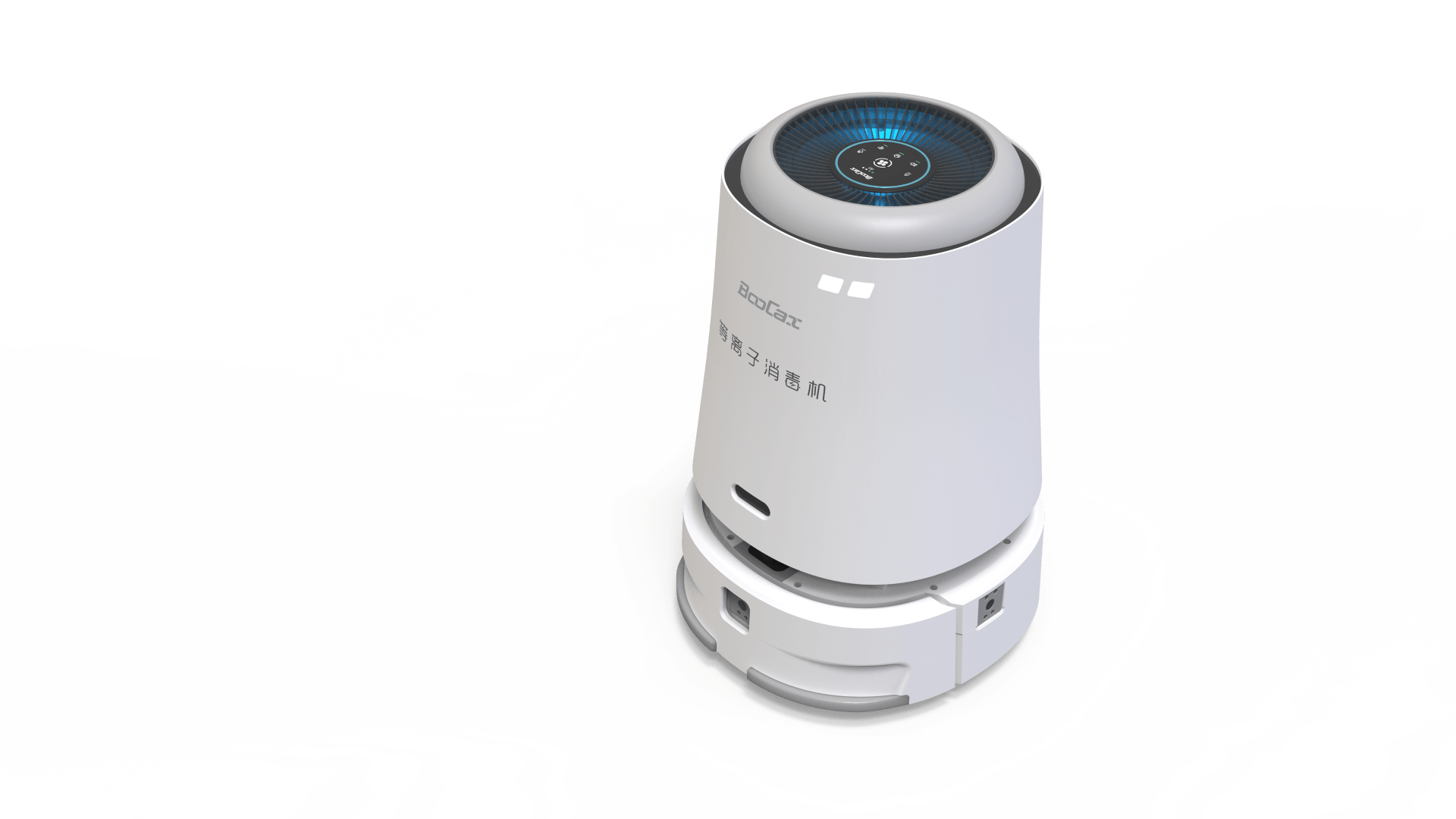

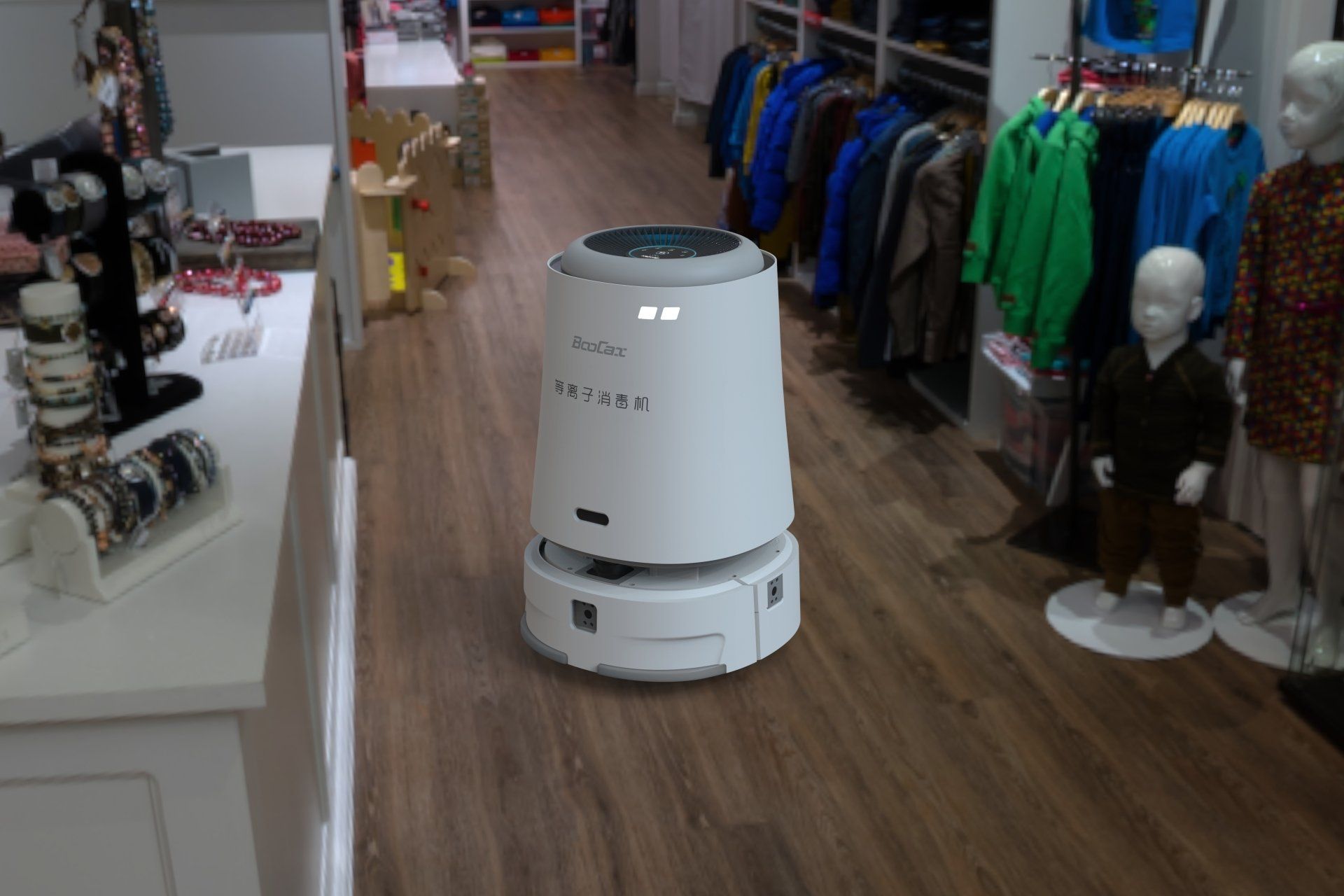

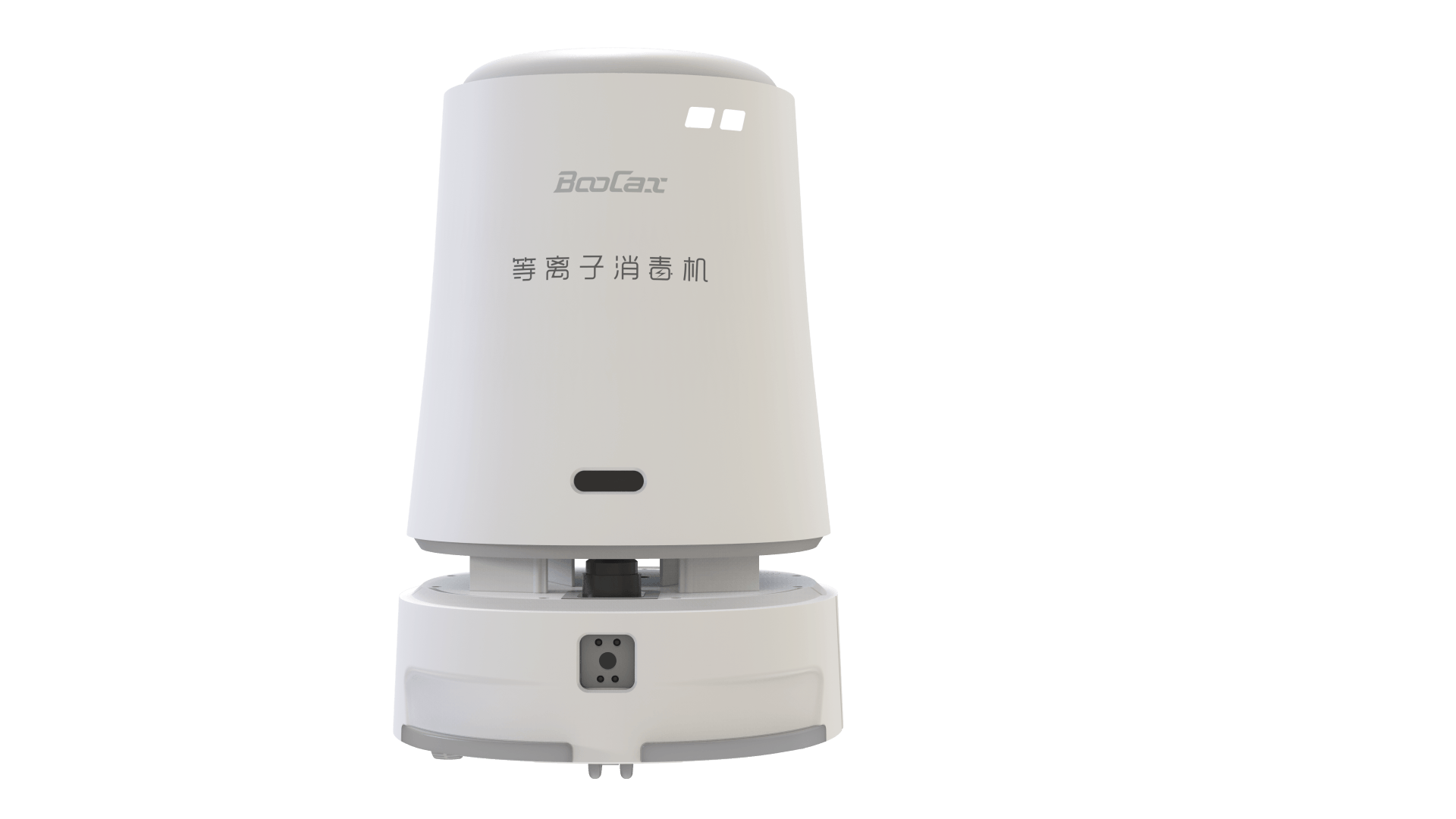

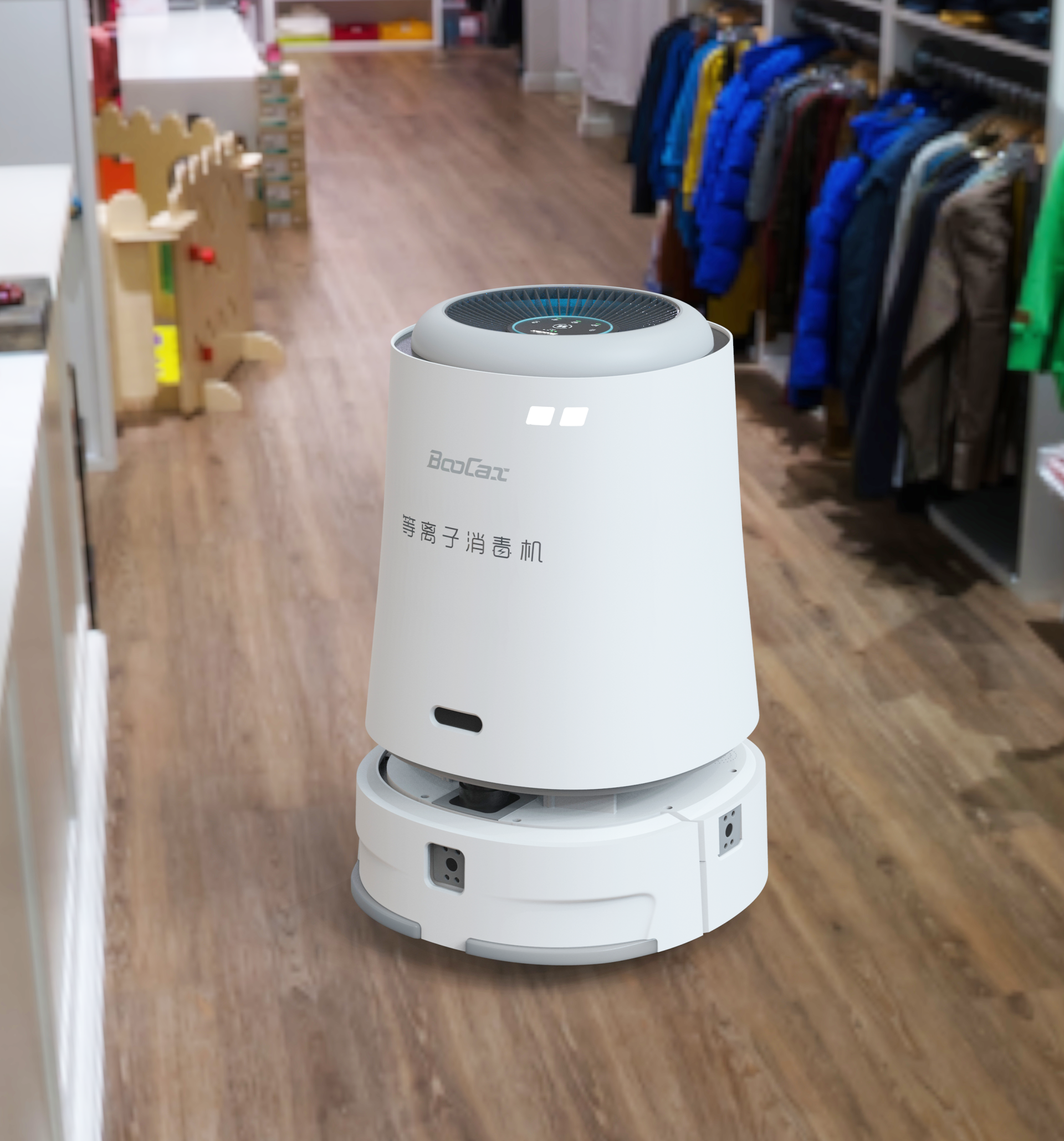

 Plasma air sterilising robot Penguin PG01, is designed complete with integrated air purification function.



With Robotics proprietary core components, including high-performance sport chassis and visual sensor with high precision, the Penguin Robot is the first mobile autonomous human-machine co-existence air sterilising robot – designed with medical-grade features.



Penguin PG01 plasma sterilisation Robot is environmentally friendly and is an exceptionally efficient automatic form of microbe control, which can effectively eradicate the reproduction of bacteria cells within its path.


It has a rapid and thorough sterilisation effect with the rate of natural bacteria reduction in-excess of 99.9%.



  • Slide title

    Write your caption here
    Button

  • Slide title

    Write your caption here
    Button

  • Slide title

    Write your caption here
    Button

  • Slide title

    Write your caption here
    Button

  • Slide title

    Write your caption here
    Button

  • Slide title

    Write your caption here
    Button

  • Slide title

    Write your caption here
    Button

Product Features

  • Autonomous path planning and auto-navigation
  • Circulating Volume: 200 - 560m³/h (3 gears).
  • Noise: 45 - 65dba.
  • Moving Speed: 0.3m/s.
  • Continuous Running: 3-hour.
  • Auto Charging.
  • Charging time 2-3hrs (0-80%)
  • Safety Protection: Visual Obstacle Avoidance.
  • Working Temperature: 0 - 50ºC.
  • Soft and hard integrated general sports chassis.
  • Remote control, sterilisation data collection control closed-loop management.
  • Indoor autonomous positioning, navigation and mechatronics
  • Automatic solution release only when pre-programmed position is reached.






How Does the Penguin Plasma Air Sterilising Robot Work?

 Within the field of indoor air disinfection and sterilization, plasma technology has shown its unparalleled superiority.



Plasma contains a large number of active oxygen ions and high-energy free radicals as part of its components make-up.

The protein and nucleic acid substances in viruses are oxidized and denatured so eradicating most types of microorganisms.



During extensive testing after the Penguin use, observation was completed using an electron microscope. This identified that the bacterial cells and virus particles were full of holes – which were achieved with the use of electrons and ions with high kinetic energy.



Therefore, when microorganisms pass through the plasma disinfection field, high-speed particles can quickly penetrate the cell membrane to destroy DNA and proteins, causing them to rapidly lose their activity (inactivation of germ cells) until they are killed or decomposed.

This process prevents the reproduction of microorganisms. (Such as bacteria and fungal spores)



Penguin Robot is a multi-functional sterilising machine, which can realise the co-existence of human and machine within an epidemic environment or the scene of a influenza outbreak.


At the same time, this robot has the function of air purification, and the removal rate of formaldehyde reaches 80%, which provides strong support for indoor air pollution problems in public places and home environments, and also provides strong support for robots in various food industries, restaurants and commercial environments.
